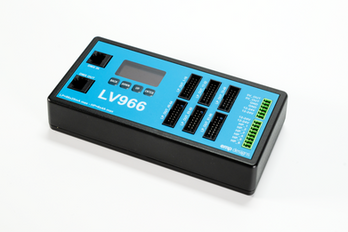

The LV966 is a powerful, compact LED control solution designed for high-density installations and precision lighting effects. Originally developed for console and control-panel lighting in Sci-Fi productions, it has quickly become a versatile tool for any application requiring large-scale LED control with minimal wiring complexity.

96 Channels With Built-In Resistors

The LV966 provides 96 individual low-power LED control channels, each fitted with an integrated 330Ω resistor. This removes the need for resistors on each LED, dramatically simplifying installation and making large arrays faster and cleaner to wire.

6 High-Current Outputs (4A Each)

Alongside the standard channels, the LV966 offers six high-current outputs capable of supplying up to 4A, giving you the ability to drive LED strips or higher-powered loads directly from the unit. Perfect for combining indicator LEDs, console lighting, and accent strips all in one controller.

Independent Addressing for Full Flexibility

Through the onboard menu system, you can assign separate DMX addresses for the low-power and high-power outputs. This allows offsetting, grouping, or independent control of each section exactly as your design requires.

DMX and CRMX Connectivity

Control options include:

• DMX      In/Pass-Through via RJ45 connectors

• CRMX      Wireless DMX built directly into the unit

Whether you’re using hard-wired data or wireless control, the LV966 integrates seamlessly into film, TV, theatre, and custom-build environments.

12–24V Operation With Onboard 5V Supply

The LV966 runs on a 12–24V power input, ideal for set lighting systems and portable rigs. It also features a local regulated 5V supply, enabling direct connection of single LEDs (2–3V) using the integrated resistors — perfect for large LED matrices, detailed console layouts, or prop lighting.

Designed for High-Volume LED Installations

By combining high channel density, built-in resistors, wireless control, and flexible addressing, the LV966 significantly reduces wiring time and simplifies even the most complex LED builds. Whether you’re illuminating a futuristic control panel or managing small LED systems across a set, the LV966 delivers power, precision, and reliability.
