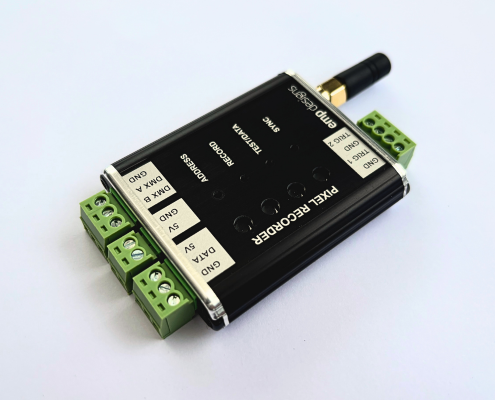

PX1-RB – boxed pixel recorder
The PX1-RB – boxed pixel recorder – is a compact and powerful tool for managing LED pixel patterns, offering both streaming and standalone playback capabilities. Its ability to record and replay patterns makes it ideal for scenarios where remote and reliable control of light effects is crucial. Whether for theatrical props, creative lighting setups, or other applications, this device provides flexibility and ease of use, all within a small box.
Click below for our ‘HOW TO USE’ video – click in bottom right corner of video for full screen.
Features
Streaming Capability:
- The device can stream pixel patterns via Lumen radio, transmitting a universe of data to the recorder.
- It supports controlling up to 170 RGB pixels or 128 RGBW pixels.
Recording and Playback:
- The PX1-RB has internal memory that can store two different recordings.
- You can record a pattern via Lumen radio and store it in one of the memory locations.
- Once recorded, the patterns can be played back by pressing the playback trigger without needing to be connected to a radio transmitter.
- This feature is particularly useful for applications where transmission channels need to be conserved.
Remote Control:
- The device can be used remotely to trigger different patterns, which is ideal for on-set applications like prop weapons.
- For example, you can record a pattern showing a weapon charging (e.g., a growing red light) and another pattern for firing (e.g., a flash of light).
- External triggers can be used to record and play back these patterns, allowing for real-time control of effects.
Power Supply:
- The unit operates on a 5V power supply.
Dimensions:
- The PX1-RB measures 61 x 50 x 13 mm (excluding the aerial).
- Including the aerial, the dimensions are 90 x 15 x 13 mm.
This product is our standard configuration. At EMP Designs, there are no limits to how we can manipulate or develop the specifications to your needs. Please contact us to discuss.
